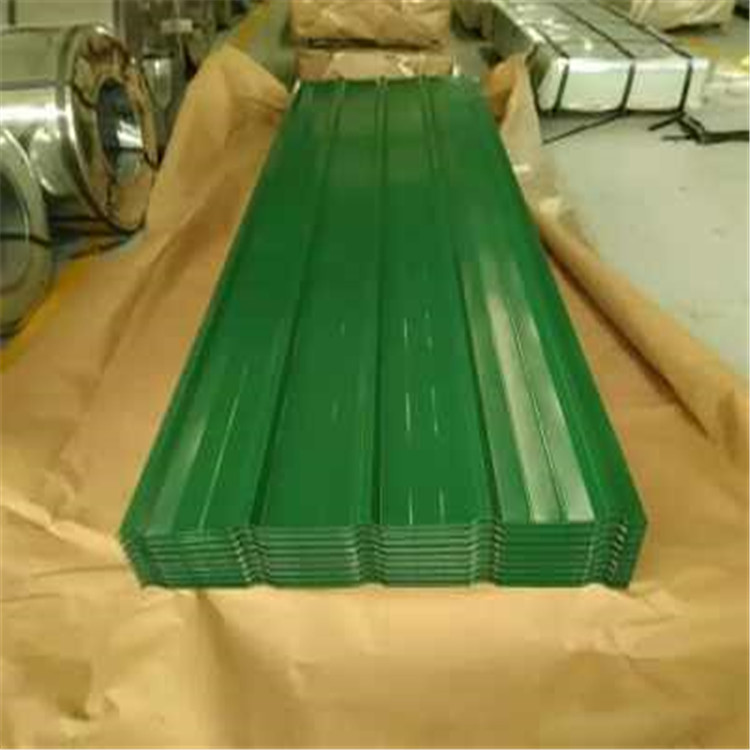

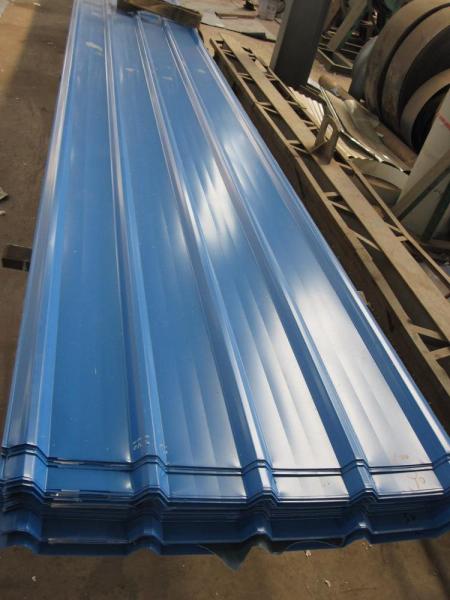

1500 - 3800mm Length JIS G3322 CGLCC, ASTM A792 Prepainted Corrugated Steel Roof Sheets

Material as per JIS G3322 CGLCC, ASTM A792, EN 10169 DX51D+AZ, AZ coating:50 g/m2 to 180 g/m2

Top surface : 15 - 20 micron polyester + 5 micron primer , Back surface: 5 - 7 micron

or 7-8 micron polyester + 5 micron primer. Color: According to RAL Card or Clients' requests

Thickness: 0.14-1.5mm

Effective width: 800/820/840/880/900mm

Length: 1500-3800mm

Wave Width: 76mm or as customer’s request

Height of Wave: 17mm or as customer’s request

Minimum order: 50MT per size

Contact:sales@wxhy.com.cn

Application:

Using hot galvanized sheet and zinciron alloy hot galvanized sheet as the substrate, color coated sheet is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester ,silicon modified polyester, highdurability polyester, polyvinylidene fluoride,epoxy and high corrosionresisting coatings have good durability, corrosionresistance and formability. Color coated sheet is widely used in building, Transport, home appliances, solar energy,furniture, etc. In home appliances, it is mainly used as the side door plate of refrigerators,and shell of DVDs, air conditions,freezers,and washing machines.

Corrugated Galvanized Sheet is mainly used as roof and wall for industrial buildings and portable houses.

Wuxi Raymond Steel Co., Ltd. was founded in Oct., 2000, with total investment of 25 million U.S Dollars, which is a large-scale iron and Steel enterprise specialized in producing hot-rolled and cold-rolled steel strip.

Wuxi Raymond Steel Co., Ltd. is situated in the region of Shitangwan Industrial Park, the Northwest Suburb, and WuXi with advantageous geographical position and convenient communication. Hu- Ning Express Way is on the north and Hu-Ning Railway, Jing-Hang Canal, No. 312 National way are on the south and Xi—Cheng Canal is on the east. The land area of the company is more than 300, 000 M2, in which, the building area is 100, 000 M2. There are 450 workers and staff members, including 75 various engineers, technicians and administrators with senior professional titles.

The main production equipment includes one advanced hot-rolled steel strip production line; 450cold- rolled steel strip reversible rolling mills； 12 acid-washing production line；auto-control cuting machine vertically and horizontally；24 sets of PC control fading-fire bright fnish facility, With advanced equipments and excellent technology we have an annual output of 350, 000 tons hot-rolled steel strip and 250, 000 tons cold-rolled steel strip. The main grade Of our products includes： carbon steel (Q195、Q215、Q235), Structural alloy steel, silica steel and stainless steel.

The production lines of hot-rolled steel strip adopted the international advanced continuous rolling technique. The machine set adopted the advanced technology and equipments, such as all-digital and all- network technology control and electric closed loop. The electrical controlled system adopted the up-to- date SIEMENS S7-400 PLC Artificial Intelligent control system it not only satisfied the craft demand of on-the-spot production, but also provided flexible and convenient man-machine operation interface for productive operation. The DCS plan organized by computer network fully reflected the thinking of modern computer control of decentralized control and centralized management.
